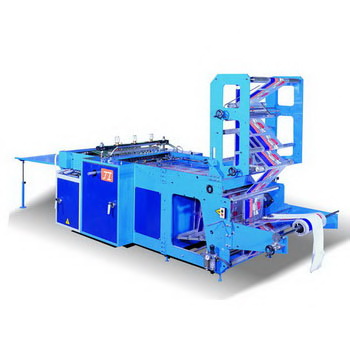

Side Sealing Bag Making Machine GF-32SE/SV

gf-32se


Specifications

GF-32SE/SV

Finished Products

Side-Sealing Bag ( Find machine from bag )

  • no 16 1161502822
  • no 17 1446034856
  • no 18 518309108
  • no 19 2038174638
  • no 20 2117814609
  • no 21 1928832536
  • no 27 1011521141
no 16 1161502822 no 17 1446034856 no 18 518309108 no 19 2038174638 no 20 2117814609 no 21 1928832536 no 27 1011521141
MODEL
GF-24SE/SV
GF-S600/SV
GF-32SE/SV
GF-S800/SV
GF-40SE/SV
GF-S1000/SV
GF-50SE/SV
GF-S1200/SV
CUTTING WIDTH
600 mm
800 mm
1000 mm
1200 mm
CUTTING LENGTH
800 mm
FILM THICKNESS
0.01 - 0.1 mm
PRODUCTION
SE model : Max. 200 Cycles/Min ; S model : Max. 150 Cycles/Min
REAR FEEDER
1 SET WITH GUSSET / FOLD / SLITTER / ADHESIVE TAPE APPLICATOR
CONTROL PANEL
1 SET WITH HMI CONTROL
SERVO DRIVE
1 SET, YASKAWA/JAPANL
PRINTING SCANNE
1 SET, SICK/GERMANY
CONVEYING BELT
1 SET
COLLECTING TABLE
1 SET
OPTIONS TENSION CONTROL, EPC, TRIANGLE FOLDING DEVICE,
PUNCH HOLE DEVICE, MEXICAN HAT PUNCH DEVICE,
ULTRASONIC SEALING DEVICE, PERFORATING SEALING KNIFE
ENVELOP PUNCHING MOLD, AUTOMATIC STACKING TABLE
* Details are available with quotation, specifications could be changed upon request.
