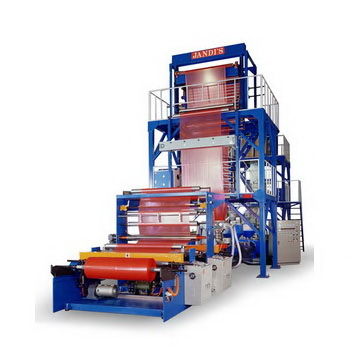

LD/LLDPE Super High Speed Inflation Machine GF-L65ES

gf-l65es


GF-L65ES
  MODEL GF-L55ES GF-L65ES GF-L85ES
FEATURE MAX. FILM WIDTH 1200 mm 1600 mm 2200 mm
MAX. CAPACITY 120 KG/HR 180 KG/HR 240 KG/HR
EXTRUDER SCREW DIAMETER 55 mm 65 mm 85 mm
DRIVING MOTOR 50 HP 75 HP 100 HP
BLOWN FILM DIES 250 mm 350 mm 500 mm
CONTROL PANEL TEMPERATURE CONTROL 6 ZONES 7 ZONES 8 ZONES
TAKE-UP UNIT TYPE TOWER FIXED TYPE
ROLLER WIDTH 1200 mm 1600 mm 2300 mm
TAKE-UP SPEED Max. 60 M/Min
WINDING UNIT TYPE SINGLE STATION, SURFACE FRICTION TYPE
BOBBIN CHANGE SEMI-AUTO TYPE, BY PNEUMATIC SYSTEM
OPTIONS AUTO LOADER, PRESSURE GAUGE, DIE ROTATING UNIT, LD/LLDPE DIE & AIR RING, STACKED AIR RING, WIDTH CONTROL, CORONA TREATER, EMBOSSING ROLLER, AIR CHILLER, VERTICAL TYPE or HORIZONTAL TYPE OSCILLATING TAKE-UP UNIT EDGE or CENTER POSITION CONTROL (EPC or CPC), MANUAL WINDER WITH AIR SHAFT, DOUBLE STATION WINDER, AUTO TENSION CONTROL, HYDRAULIC UNLOADING, HEAT-SLITTING, 2ND GUSSET UNIT, IN-LINE BAG MAKING / PRINTING MACHINE, EDGE-TRIM WINDER, EDGE-TRIM ON-LINE RE-USE SYSTEM
