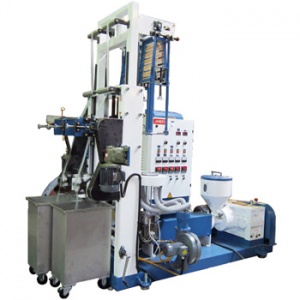

Mini Type Twin Head Inflation Machine GF-NL35D

gf-nl35d


Specifications

GF-NL35D
  MODELGF-H45DGF-H55D
FEATURE MATERIAL TO BE USED
HDPE/LDPE/LLDPE RESIN
MAX. FILM WIDTH 450 mm 550 mm
FILM THICKNESS
0.008-0.08mm for HDPE
0.015-0.2mm for LD/LLDPE
MAX. EXTRUSION OUTPUT 45 KG/HR 80 KG/HR
EXTRUDER SCREW DIAMETER 45 mm 55 mm
SCREW L/D RATIO
30 : 1
 30 : 1
CYLINDEX BLOWER 2 SETS 2 SETS
DRIVIVING MOTOR 15 HP + INVERTER 30 HP + INVERTER
HDPE DIES (m/m) 40/ 60 mm x 2 50/70 mm x 2
CONTROL
PANEL		 TYPE
INDEPENDENT TYPE SWITCH BOARD (BOX)
TEMPERATURE CONTROL 7 POINTS 9 POINTS
COOLING
EQUIP		 TYPE
AIR COOLING SYSTEM
AIR BLOWER 2 HP x 2 SETS 3 HP x 2 SETS
TAKE-UP
UNIT		 TYPE
TOWER FIXED TYPE
TAKE-UP ROLLER

500 mm L x 2 SETS

 600 mm L x 2 SETS
TAKE-UP MOTOR 1/2 HP + INVERTER 1/2 HP + INVERTER
TAKE-UP SPEED
9 x 90 M/ Min.
STEADY PLATE
2 SETS WITH GUSSET BOARDS
GUIDE ROLLER
500 mm L
 600 mm L
WINDING
UNIT		 SURFACE WINDER
MANUAL TYPE, SINGLE STATION WINDER
EFFECTIVE WIDTH 450 mm x 2 550 mm x 2
FILM WOUND-UP DIA. 800 mm 800 mm
WINDING MOTOR
20 KG / CM x 2SETS
 30 KG / CM x 2 SETS
OPTIONAL
DEVICE		 AUTO. HOPPER LOADER, SURFACE TREATER, EMBOSSING UNIT, FULLY AUTOMATIC
WINDER, AIR SHAFT, DIE ROTARY UNIT, AIR CHILLER, LD/LLDPE DIES & AIRRING, FLEXO.
PRINTING PRESS, EPC, TENSION CONTORL, ... ETC.
