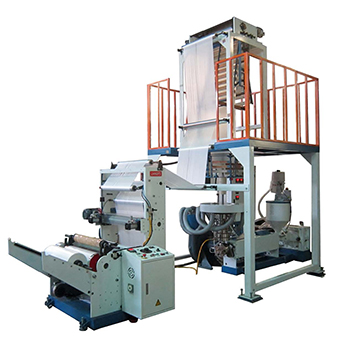

HDPE High Speed Inflation Machine GF-H50

gf-h50_377368403


Specifications

GF-H50
MODEL GF-H35 GF-H45 GF-H50 GF-H55 GF-H65
MATERIAL TO BE USED HDPE (High Density Polyethylene)
MAX. FILM WIDTH 400 mm 600 mm 800 mm 1000 mm 1200 mm
EXTRUDER SIZE 35 mm 45 mm 50 mm 55 mm 65 mm
MOTOR+INVERTER 10 HP 20 HP 30 HP 40 HP 60 HP
DIES 50 mm 70 mm 90 mm 120 mm 150 mm
MAX. CAPACITY 25 KG/HR 40 KG/HR 60 KG/HR 80 KG/HR 120 KG/HR
CONTROL PANEL INDEPENDENT TYPE SWITCH BOARD
AIR RING 1 SET, DUALLIP AIR RING
BLOWER+INVERER 2 HP 3HP 5 HP 7.5HP 10HP
TAKE-UP TOWER TOWER FIXED TYPE
ROLLER WIDTH 500 mm 700 mm 900 mm 1100 mm 1300 mm
SURFACE WINDER ONE STATION, MANUAL TYPE
OPTIONS Auto Loader, Manual Screen Changer, Pressure Gauge, Die Rotating Unit,
LDPE Dies/Air ring, Corna, Embossing Unit, 2nd Station Winder, Air Shaft
* Details are available with quotation, specifications could be changed upon request.
