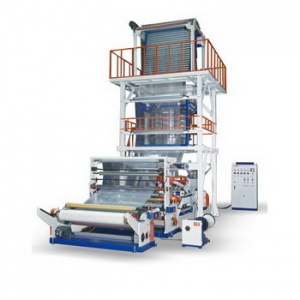

LD/LLDPE High Speed Inflation Machine GF-L65

gf-l65-1
gf-l65-1gf-l65


Specifications

GF-L65
MODELGF-L35GF-L45GF-L50GF-L55GF-L65
MATERIAL TO BE USED  LD/LLDPE (Low Density & Linear Low Density Polyethylene)
MAX. FILM WIDTH 400 mm 600 mm 800 mm 1000 mm S type:1200mm
E type:1500mm
EXTRUDER SIZE 35 mm 45 mm 50 mm 55 mm 65 mm
MOTOR+INVERTER 10 HP 20 HP 30 HP 40 HP 60 HP
DIES 80 mm 120 mm 150 mm 200 mm S type:250mm
E type:300mm
MAX.CAPACITY 25 KG/HR 40 KG/HR 60 KG/HR 90 KG/HR 140 KG/HR
CONTROL PANEL INDEPENDENT TYPE SWITCH BOARD
AIR RING 1 SET, DUALLIP AIR RING
ROLLER WIDTH 500 mm 700 mm 900 mm 1100 mm S type:1300mm
E type:1600mm
SURFACE WINDER ONE STATION, MANUAL TYPE
OPTIONS Auto Loader, Manual Screen Changer, Pressure Gauge, Die Rotating Unit, Corna,
HDPE Dies/Air ring, Flying Knife, 2nd Station Winder, Air Shaft, Air Chiller
* Details are available with quotation, specifications could be changed upon request.
