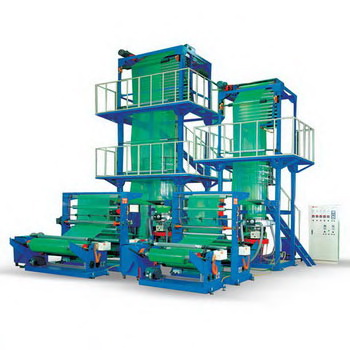

LD/LLDPE High Speed Inflation Machine GF-L65&L55

gf-l65l55


Specifications

GF-L65&L55
  MODELGF-L35GF-L45GF-L55GF-L65
FEATURE MAX. FILM WIDTH 400 mm 700 mm 1000 mm 1500 mm
MAX. EXTRUSION OUTPUT 25 KG/HR 40 KG/HR 90 KG/HR 140 KG/HR
EXTRUDER SCREW DIAMETER 35 mm 45 mm 55 mm 65 mm
SCREW L/D RATIO 30:1
BLOWN FILM DIES 100 mm 150 mm 250 mm 350 mm
CONTROL PANEL TEMPERATURE CONTROL 3 ZONES 4 ZONES 5 ZONES 6 ZONES
TAKE-UP UNIT ROLLER WIDTH 450 mm 800 mm 1100 mm 1600 mm
TAKE-UP SPEED Max. 60 M/Min
WINDING UNIT TYPE SINGLE STATION, SURFACE FRICTION TYPE
OPTIONS AUTO LOADER,DIE ROTATING UNIT, LD/LLDPE DIE & AIR RING, WIDTH CONTROL, CORNA TREATER, EMBOSSING UNIT, AIR SHAFT, DOUBLE STATION WINDER (UP/DOWN or BACK-TO-BACK TYPE),
FULL-AUTO WINDER, HEAT-SLITTING UNIT, 2ND GUSSET UNIT, IN-LINE BAG MAKING MACHINE,
IN-LINE PRINTING MACHINE ...etc.
Specifications of the machine could be changed according to your requirements.
