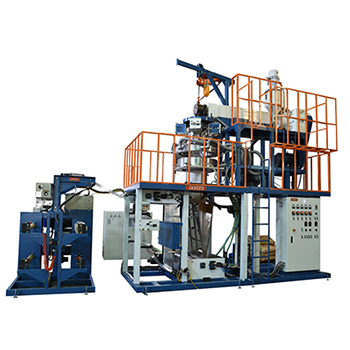

P.P. Tubular Film Inflation Machine GF-P65

gf-p65


GF-P65
MODEL GF-P45 GF-P55 GF-P65 GF-P75
MATERIAL TO BE USED P.P. (Polypropylene) 聚丙烯
MAX. FILM WIDTH 400 mm 600 mm 800 mm 1000 mm
EXTRUDER SIZE 45 mm 55 mm 65 mm 75 mm
MOTOR+INVERTER
15 HP
25 HP 30 HP 40 HP
DIES 150 mm

250 mm 350 mm 450 mm
MAX. CAPACITY 40 kg/hr 60 kg/hr 80 kg/hr 100 kg/hr
CONTROL PANEL INDEPENDENT TYPE SWITCH BOARD
AIR RING
1 SET, SINGLE LIP AIR RING
BLOWER+INVERER
1/2 HP
1HP 2 HP 2HP
SIZING RING
5 PCES
DRYING SYSTEM
HOT AIR TYPE
ROLLER WIDTH 500 mm 700 mm 900 mm 1100 mm
OPTIONS Auto Loader, Hopper Dryer, Manual Screen Changer, Pressure Gauge, Die Rotating Unit,
Corna, Static Eliminator, 4-Spindle Winder, Air Shaft, Water Chiller … etc.
* Details are available with quotation, specifications could be changed upon request.
